UAV Design & Manufacturing  ·  Gariep, Free State

Purpose-built UAV platforms for demanding real-world applications. Designed, fabricated, and flight-tested in-house. Proven in the field before we show them to you.

Our Products Get in Touch

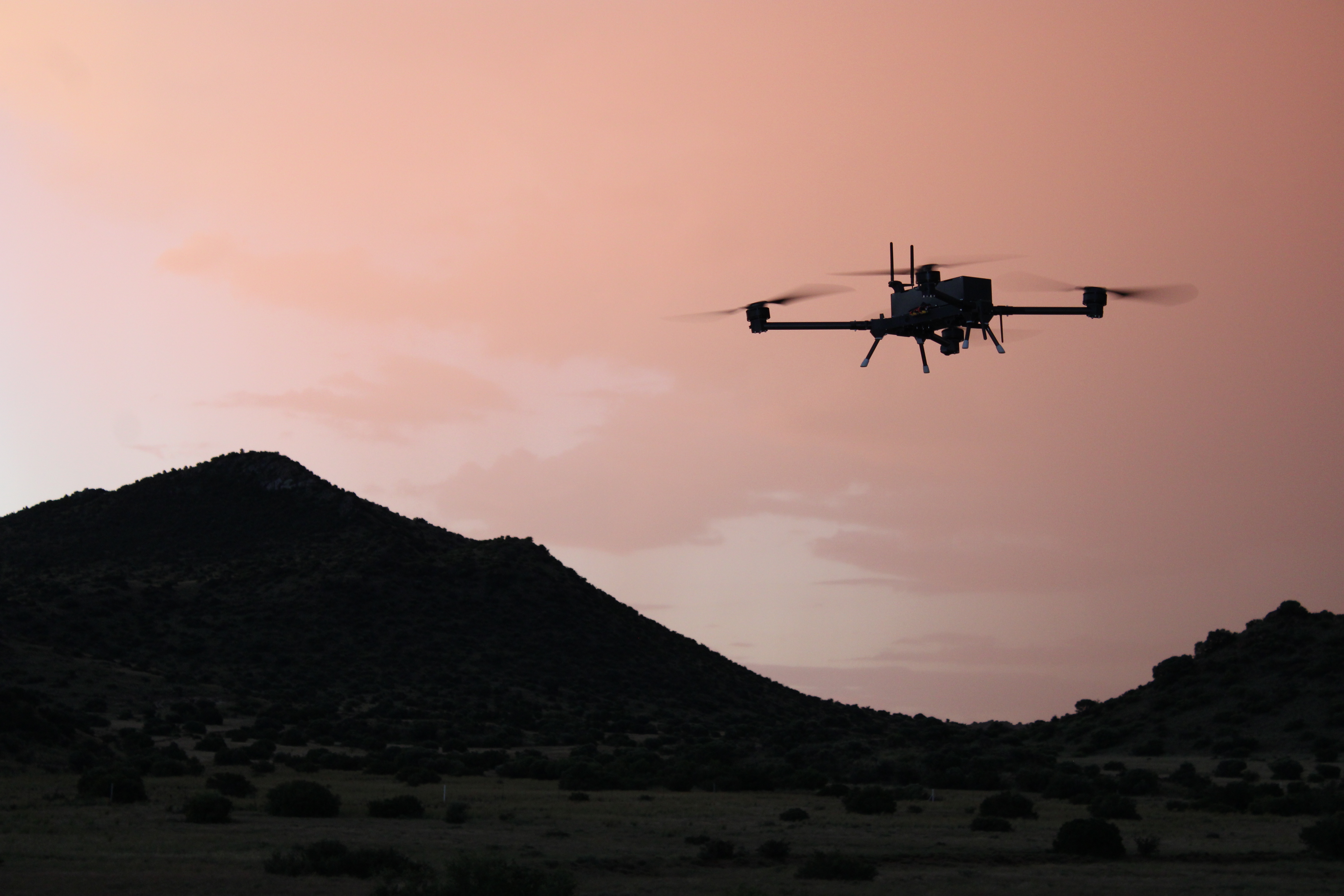

Deltatech Aero UAV operations

Open-architecture platforms — every system can be modified to accept new payloads or gimbals and integrated directly with the flight control system and datalink. Electronics, datalinks, and onboard computers can be swapped or specified to customer requirements.

WINGSPAN 2400 mm FUSELAGE

UAV Platforms

Our Current Products

Each system is purpose-built and field-tested. Performance figures are from real-world flight data.

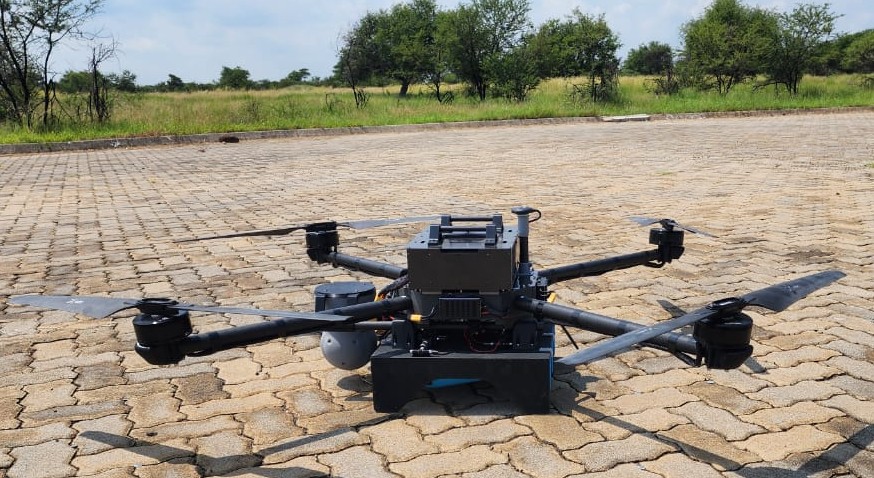

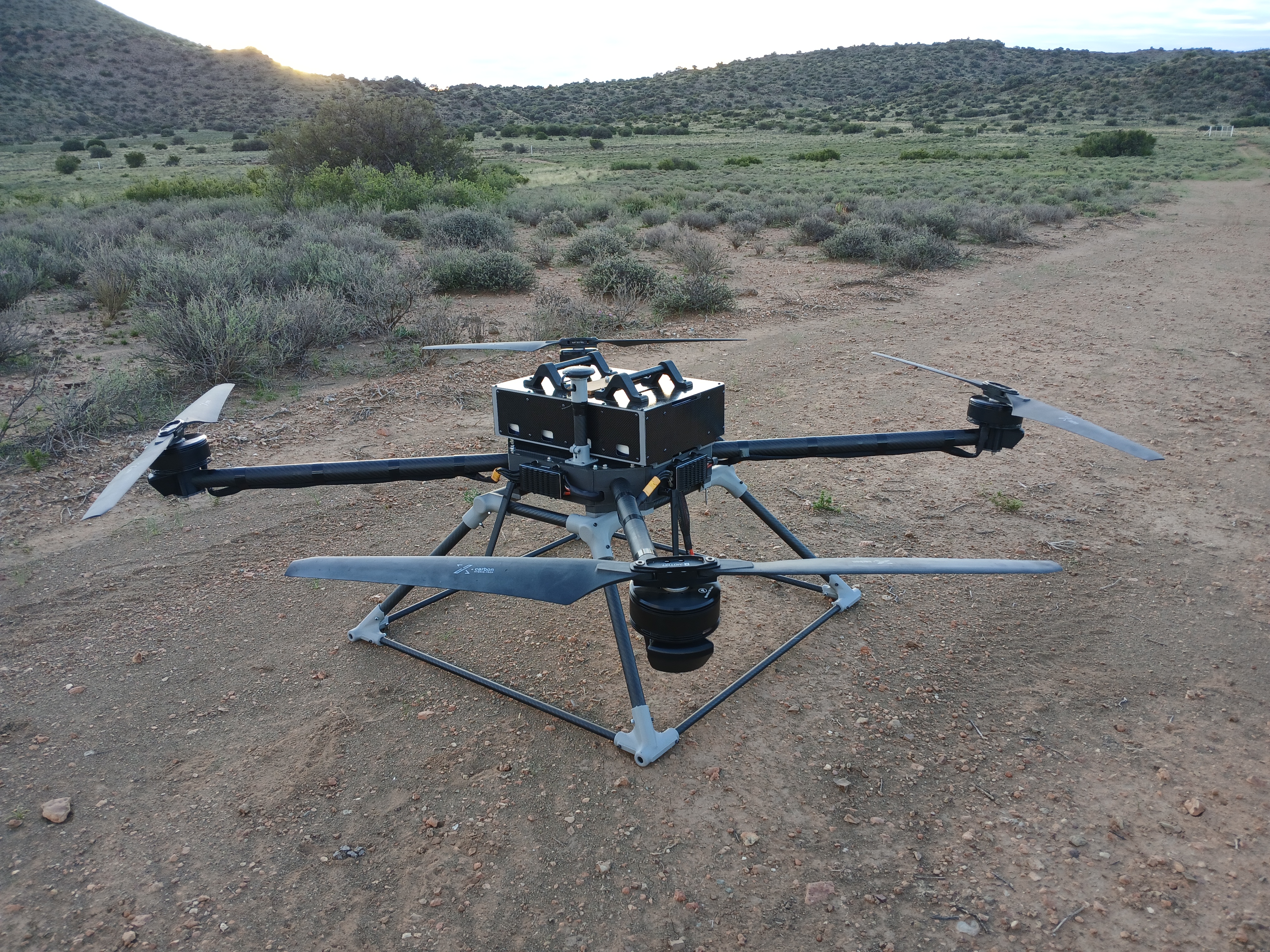

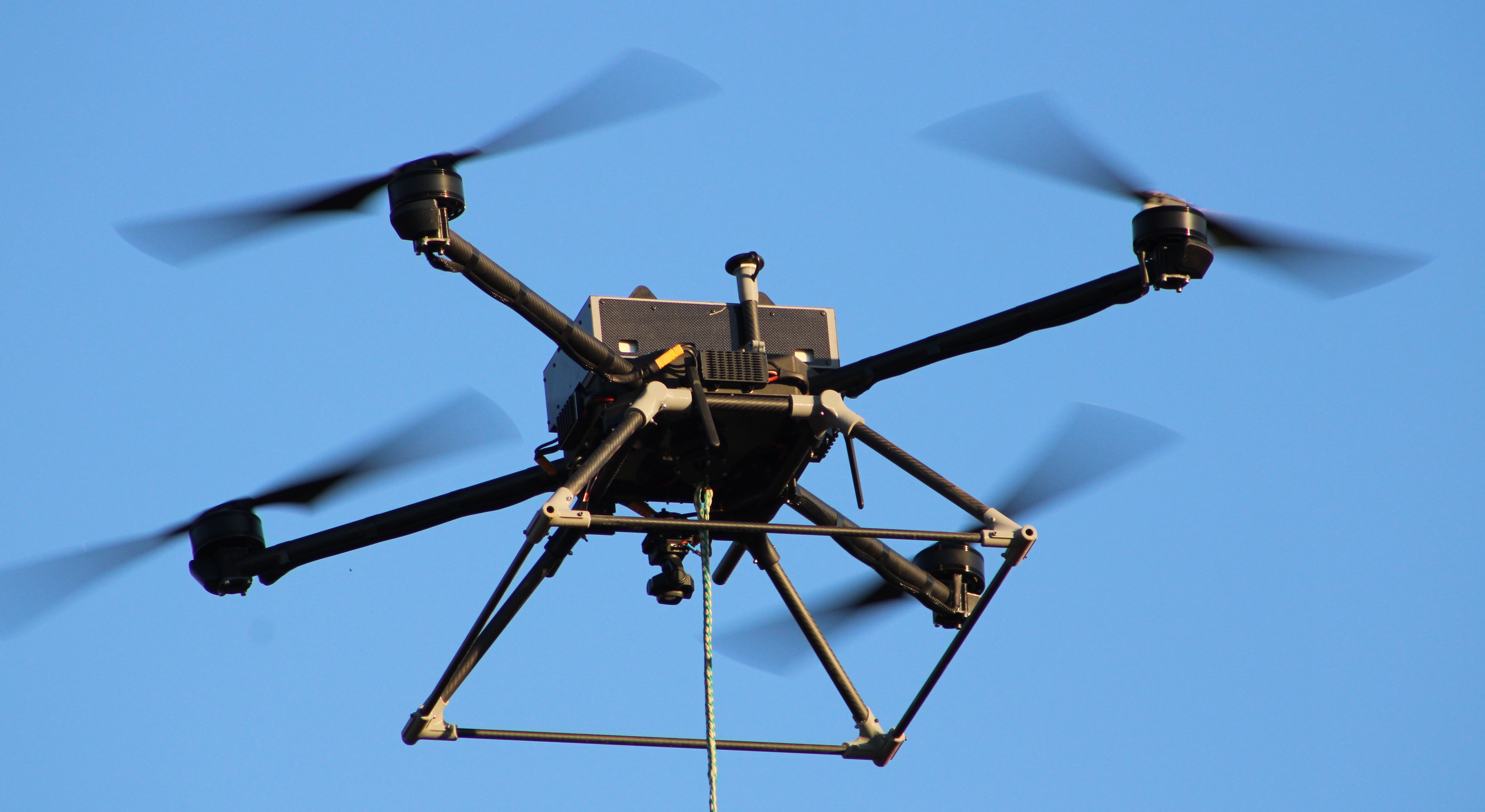

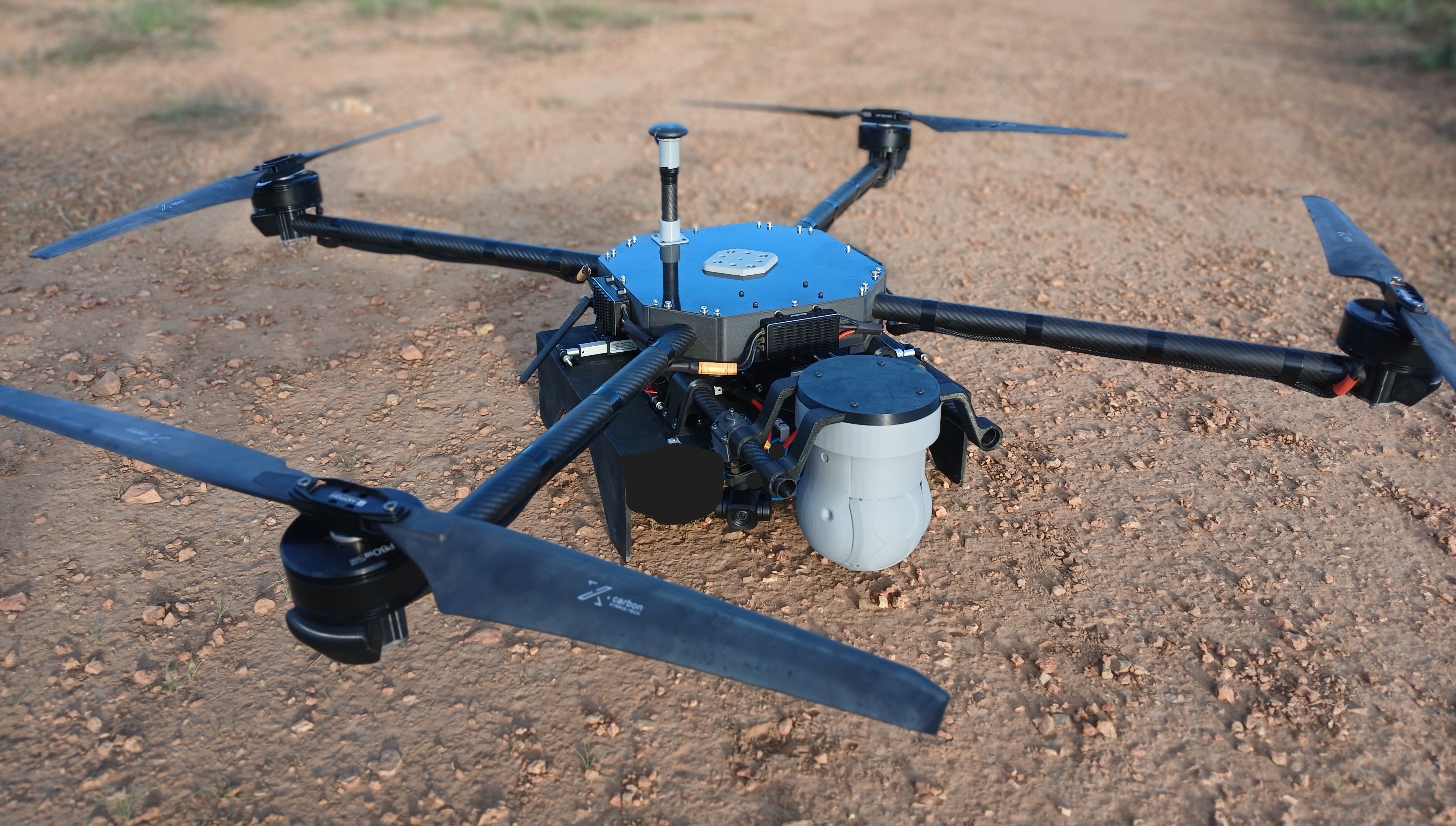

Mantaray V1

30 kg Heavy-Lift Quadcopter

Removable carbon fibre boom architecture for compact transport. Disassembles to backpack-portable configuration, reassembled by a single operator in minutes. Large, low-KV motors and long-chord propellers deliver high efficiency and a very low acoustic signature.

Endurance (no payload)
60 min
Endurance (8 kg payload)
40 min
Endurance (14 kg payload)
15 min
GCS Range
13 km LOS
Cruise Speed
50 km/h
Conditions
Light rain · −5–50°C
  • Handheld GCS: 1080p live feed, gimbal and payload control, HDMI out
  • Full autonomous stack: waypoint missions, RTL, geofence, signal-loss failsafe
  • Multiple payload and battery configurations

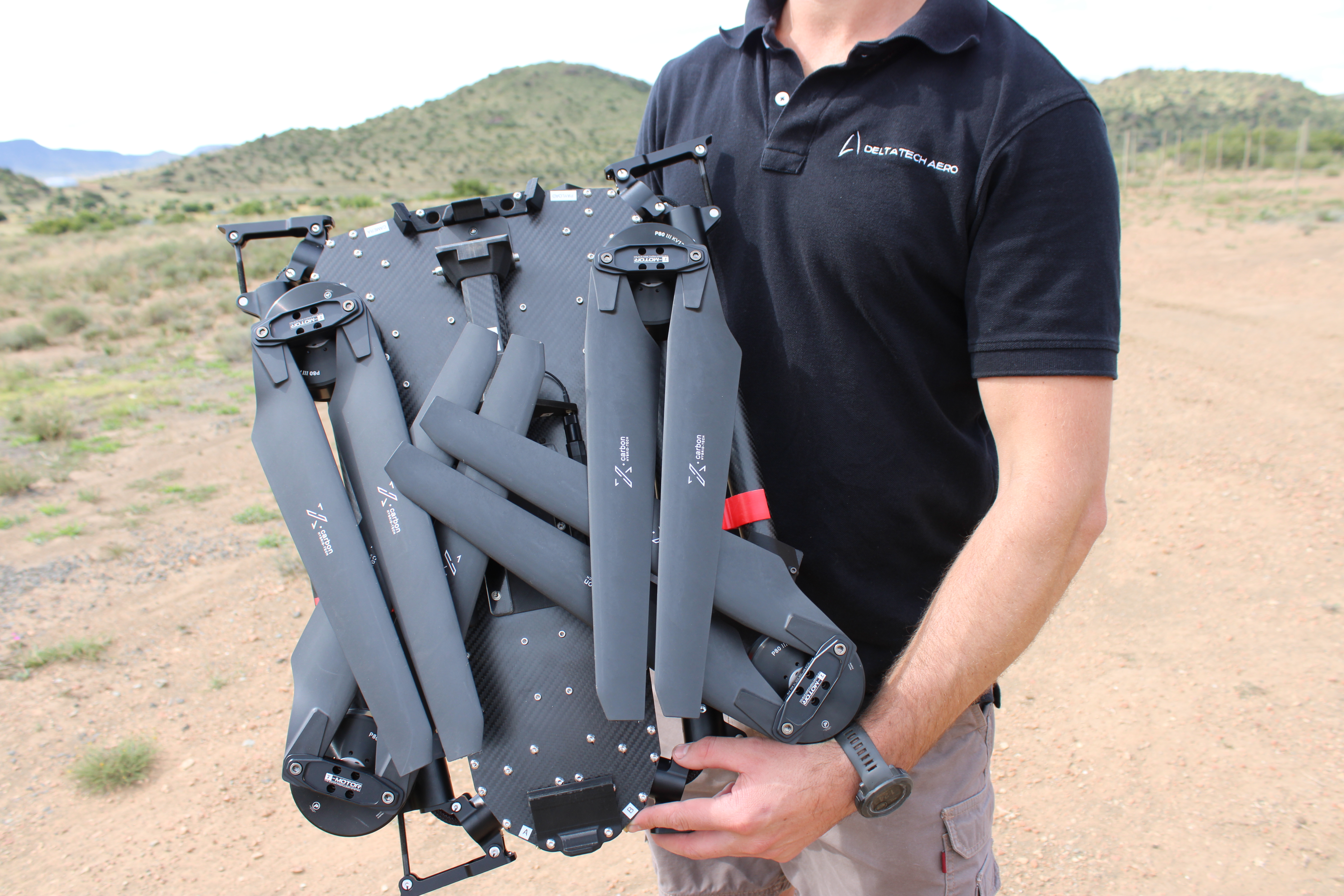

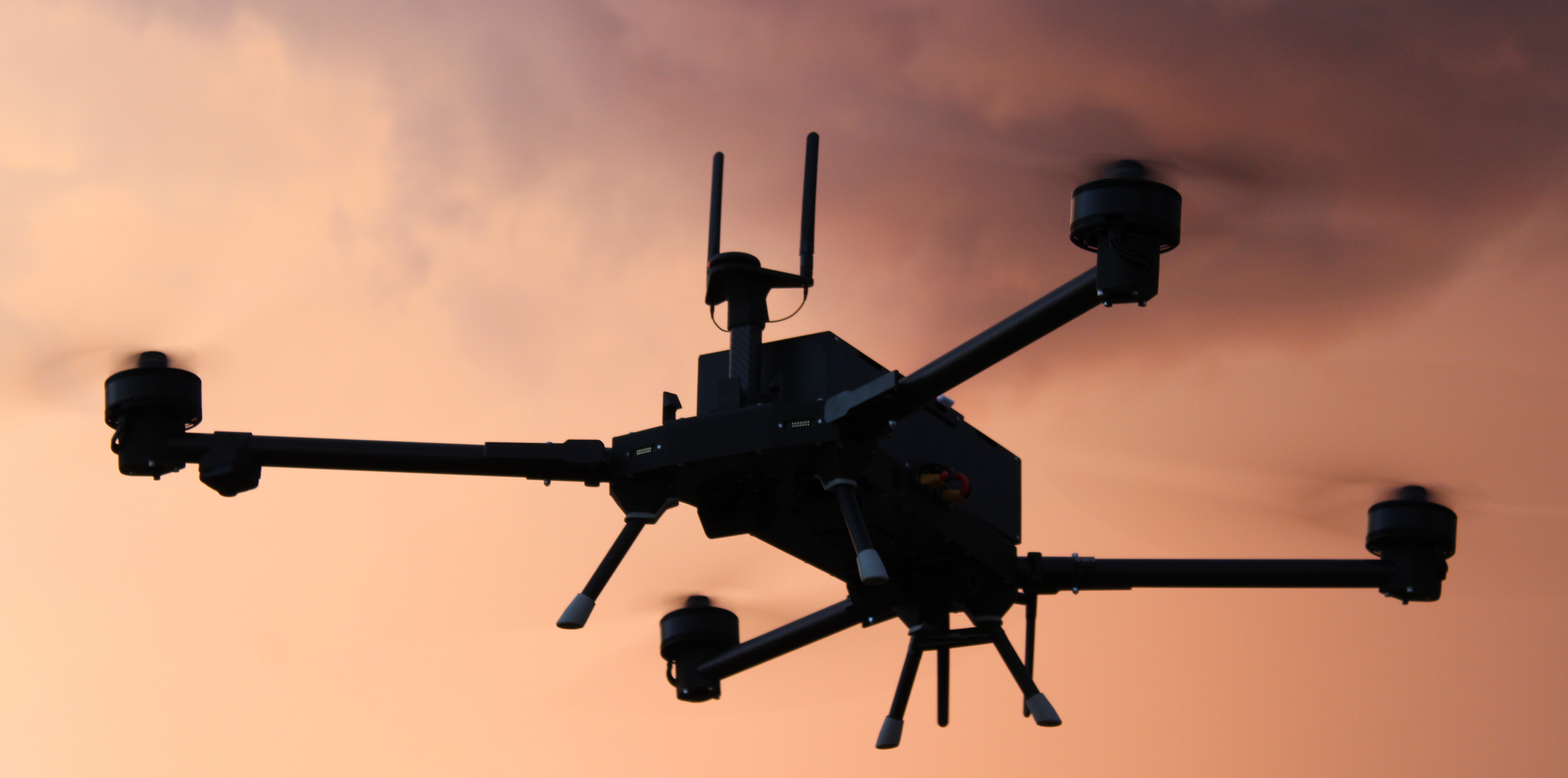

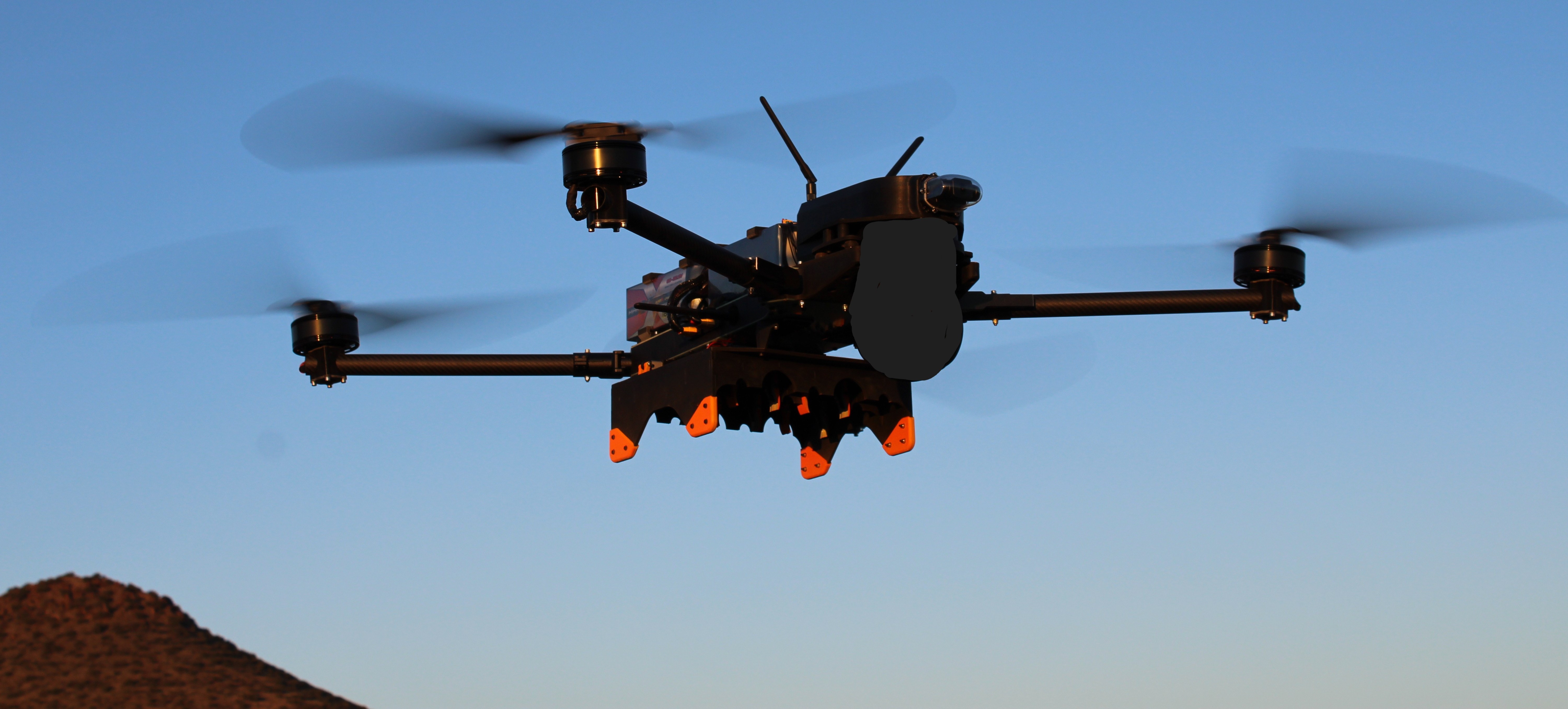

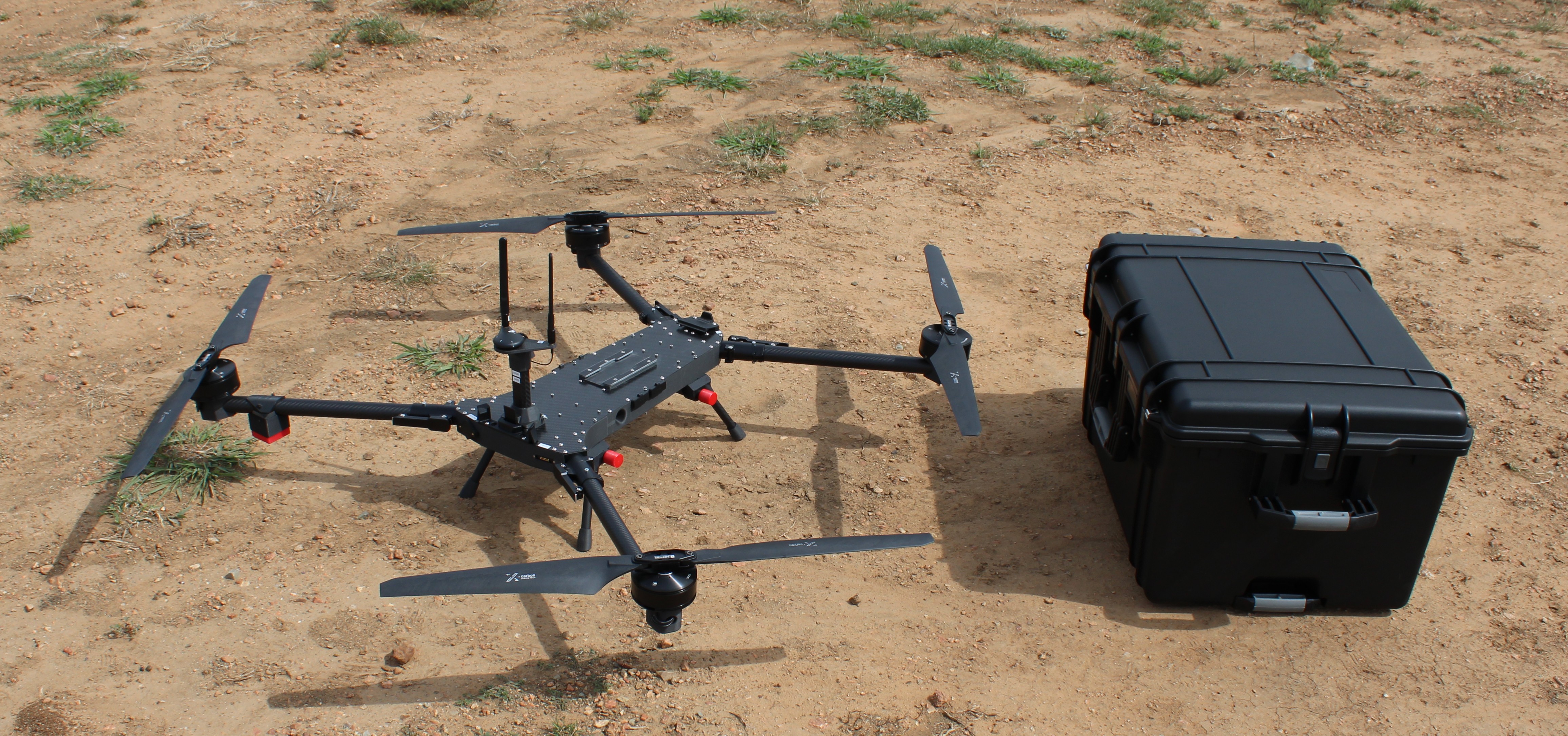

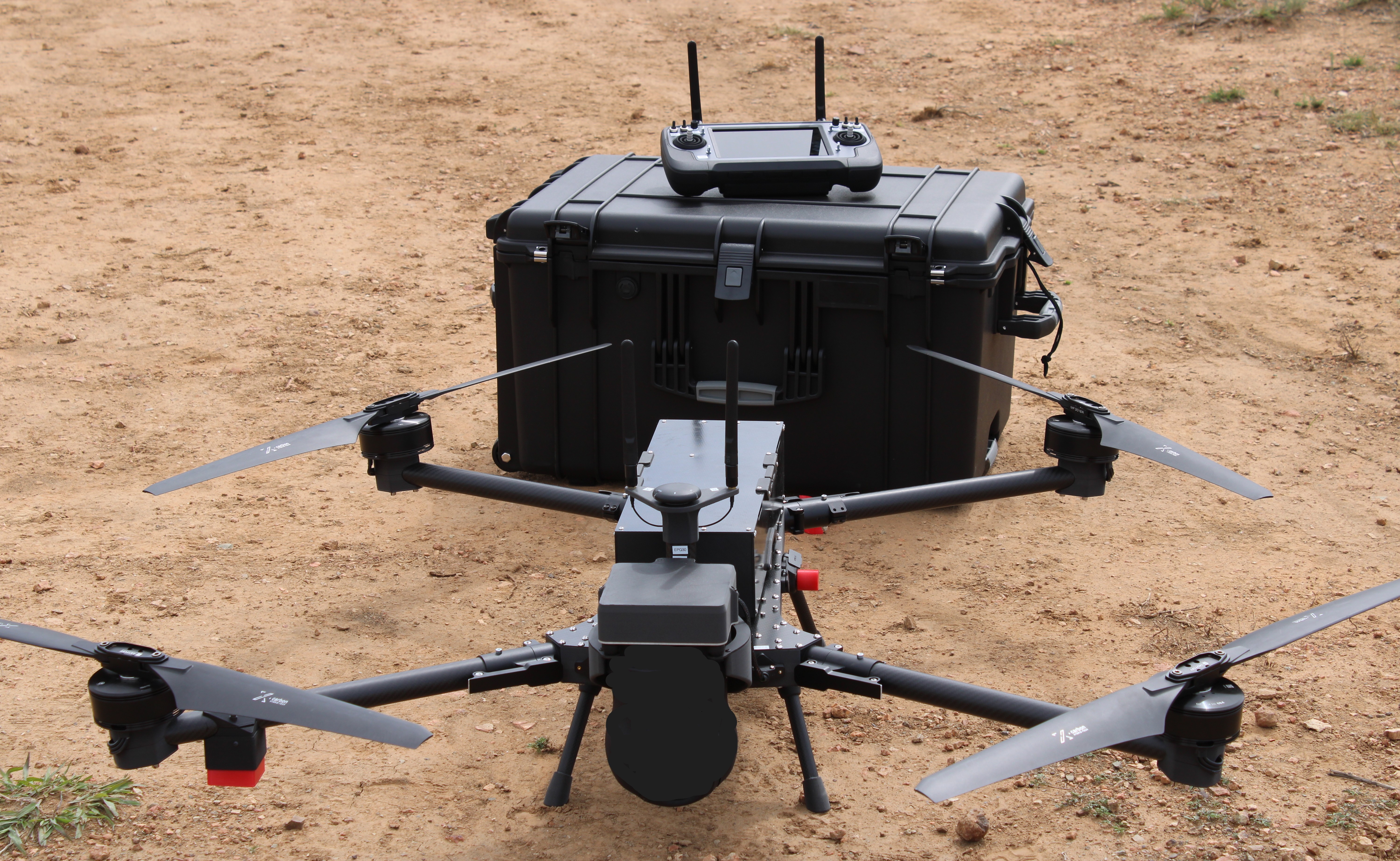

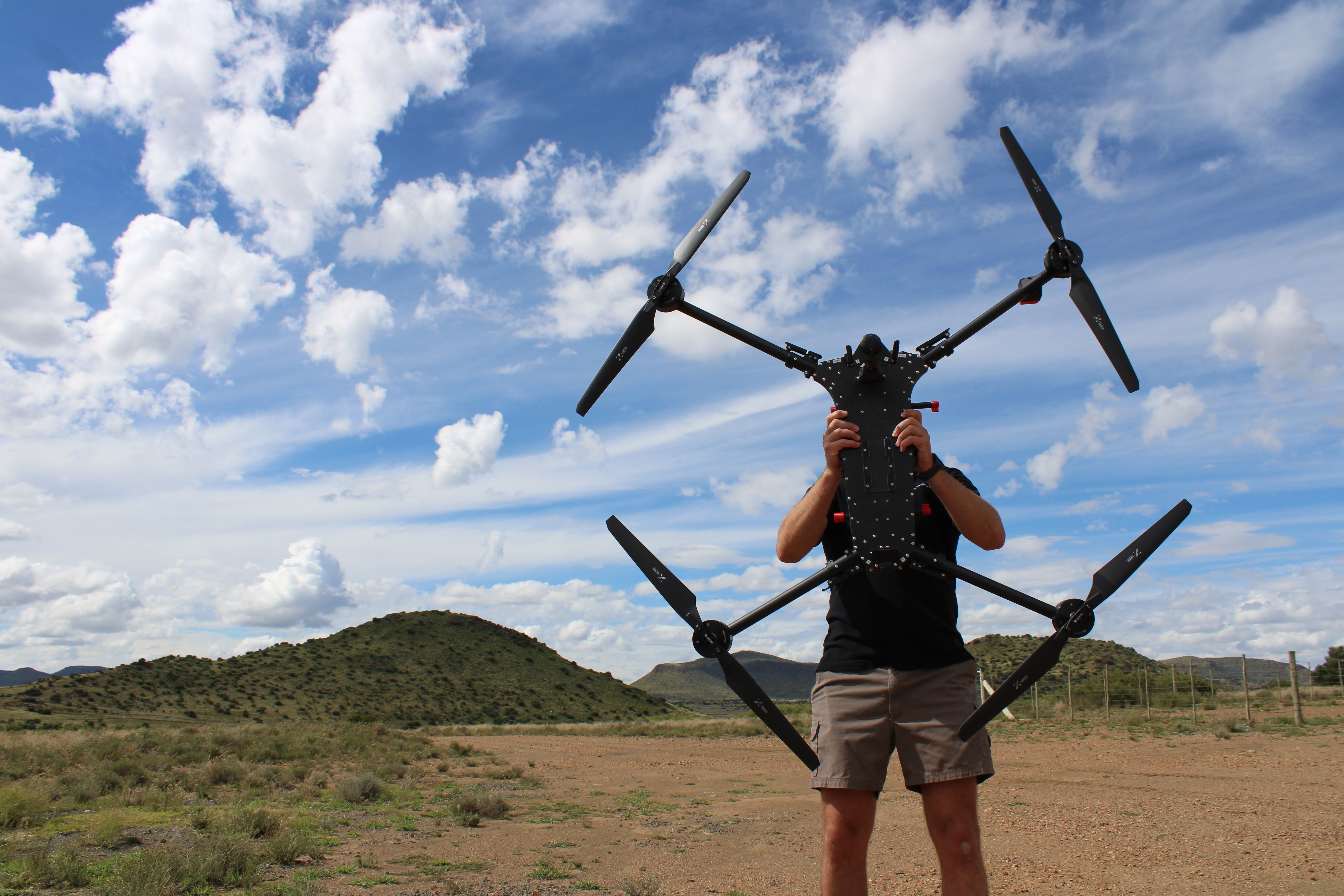

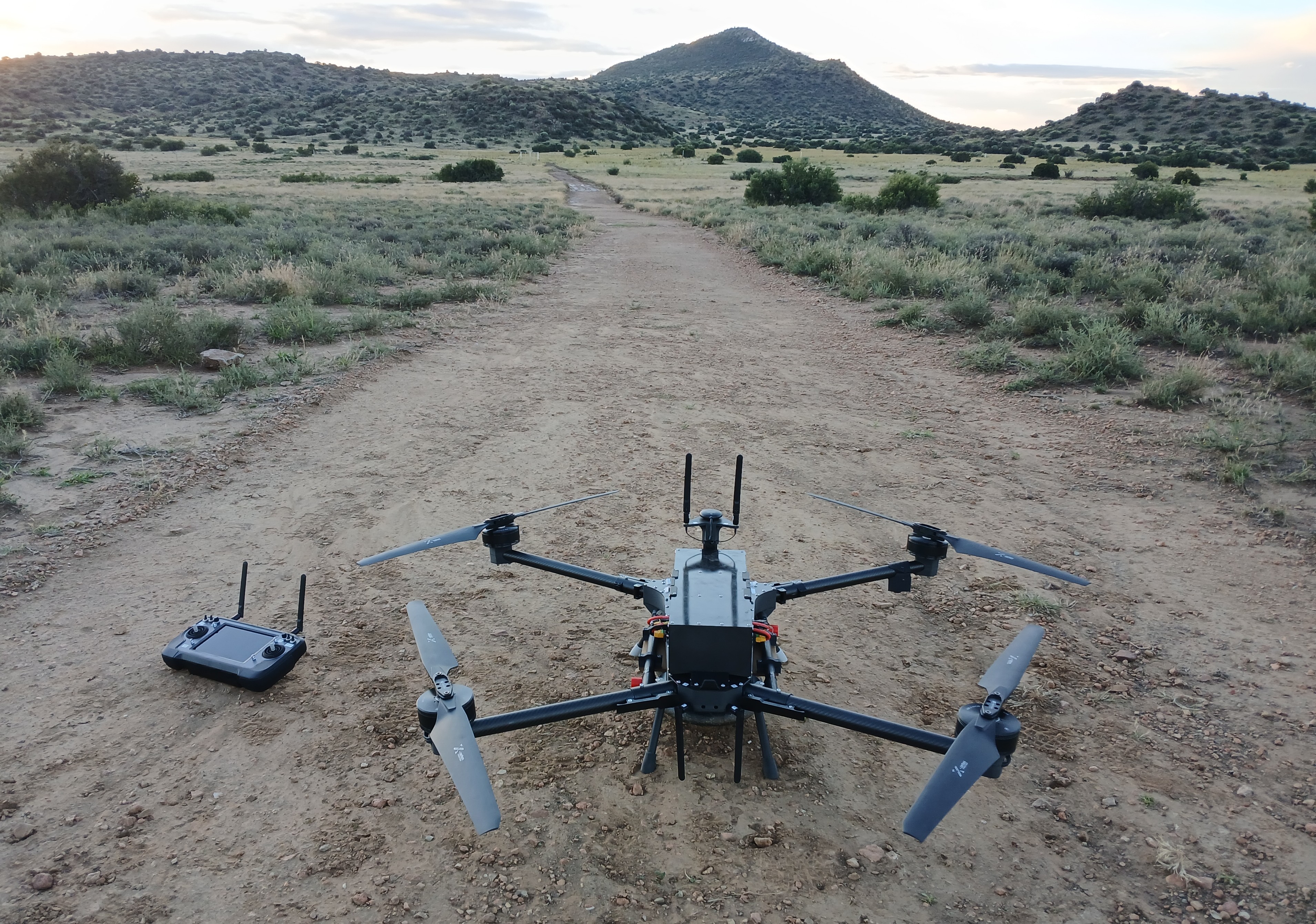

Mantaray V2

Folding-Boom Rapid-Deploy Variant

Same platform as the V1 with a tool-free folding boom system. Arms collapse and lock without fasteners. From transport case to airborne in under three minutes by one person. Light rain rated with forced concealed cooling to manage electronics temperature in demanding conditions.

Endurance (no payload)
60 min
Endurance (8 kg payload)
40 min
Endurance (14 kg payload)
15 min
Deploy Time
<3 min
GCS Range
13 km LOS
Cruise Speed
50 km/h
Conditions
Light rain · −5–50°C
  • Tool-free folding booms — no hardware required to deploy or stow
  • Hot-swappable battery — clips in and out in seconds, no tools required
  • Enclosed battery bay protects cells from rain and direct sun heat exposure
  • Light rain rated with forced concealed cooling for all-condition reliability

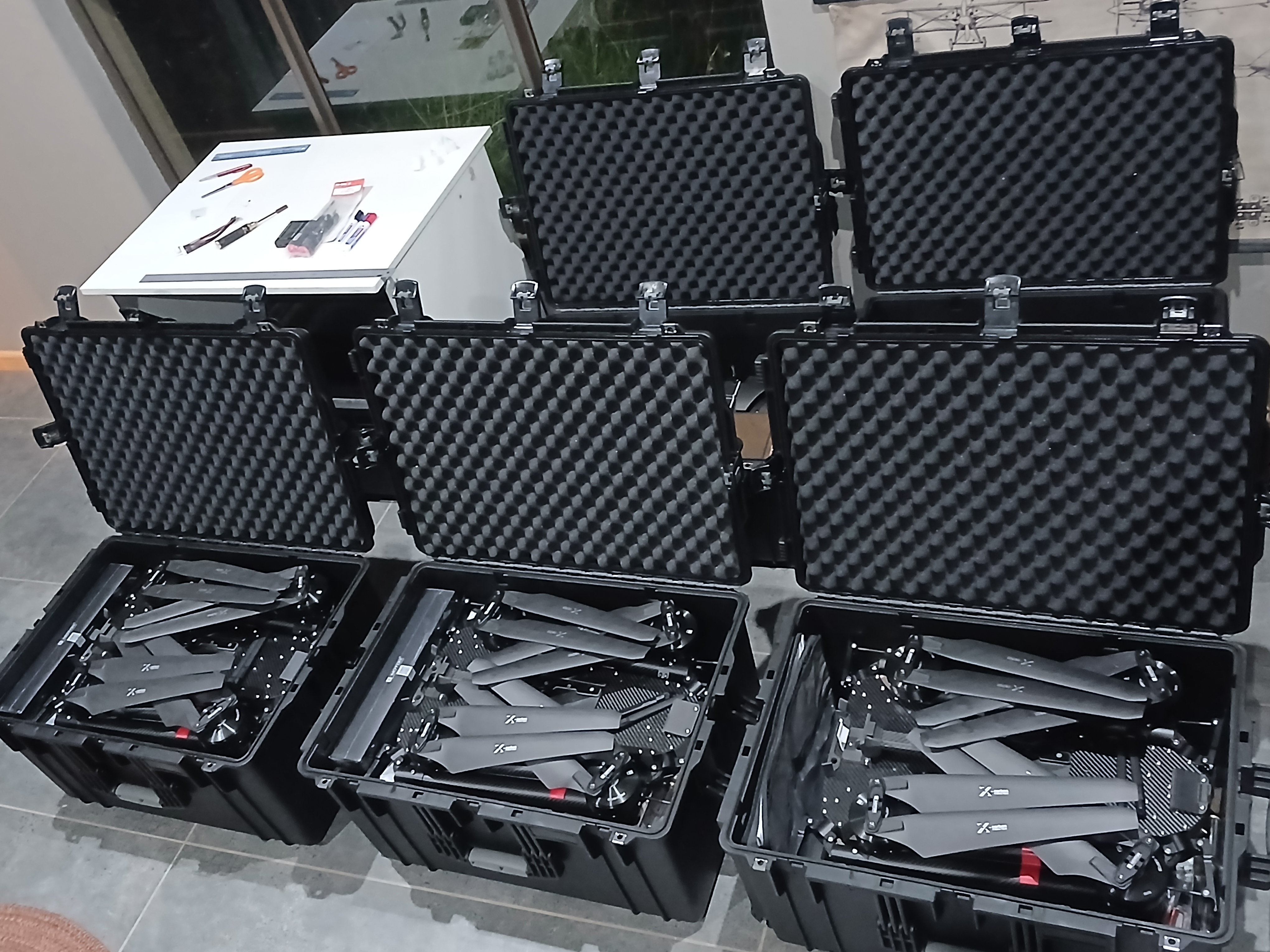

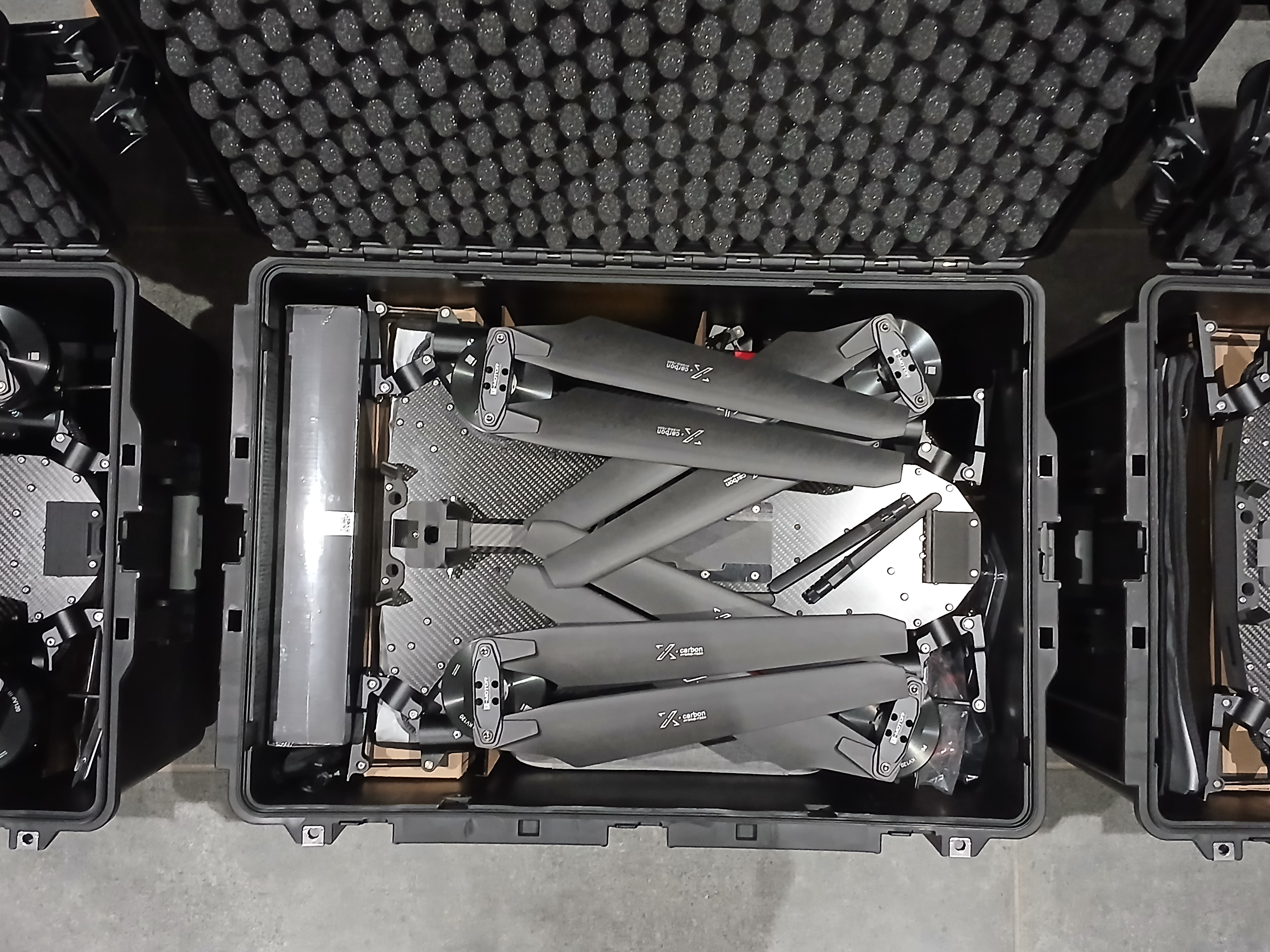

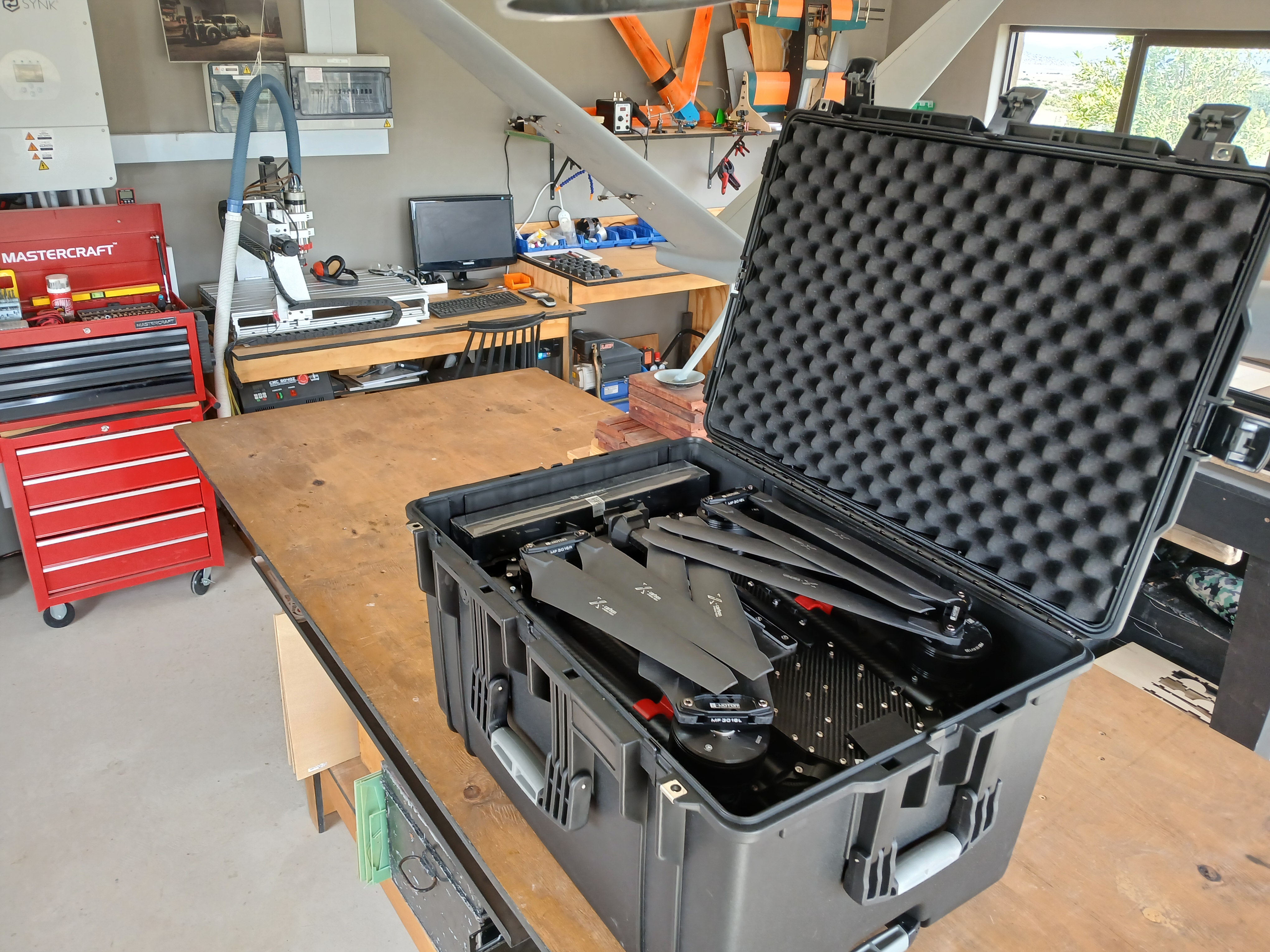

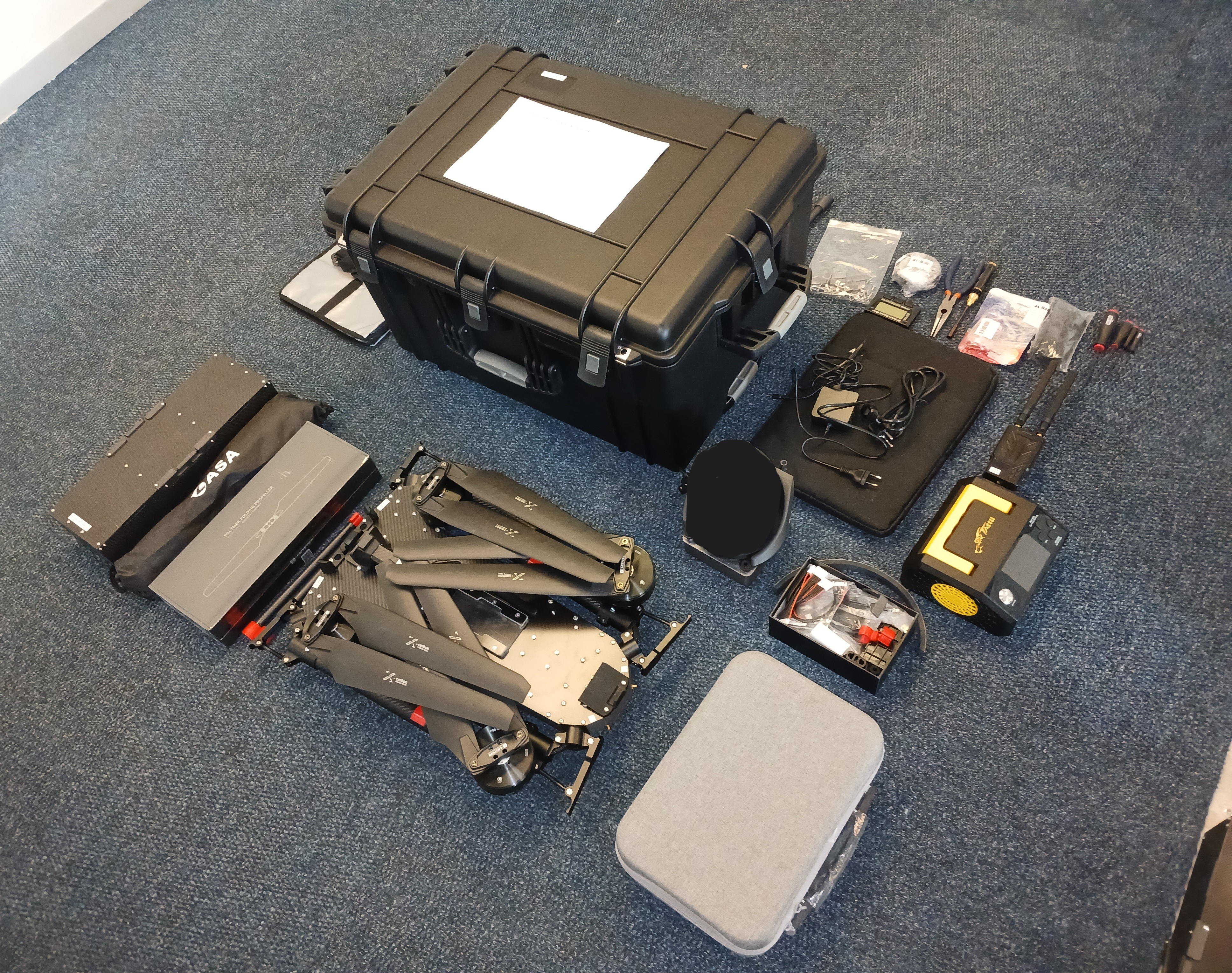

  • Pelican-style transport case included as standard

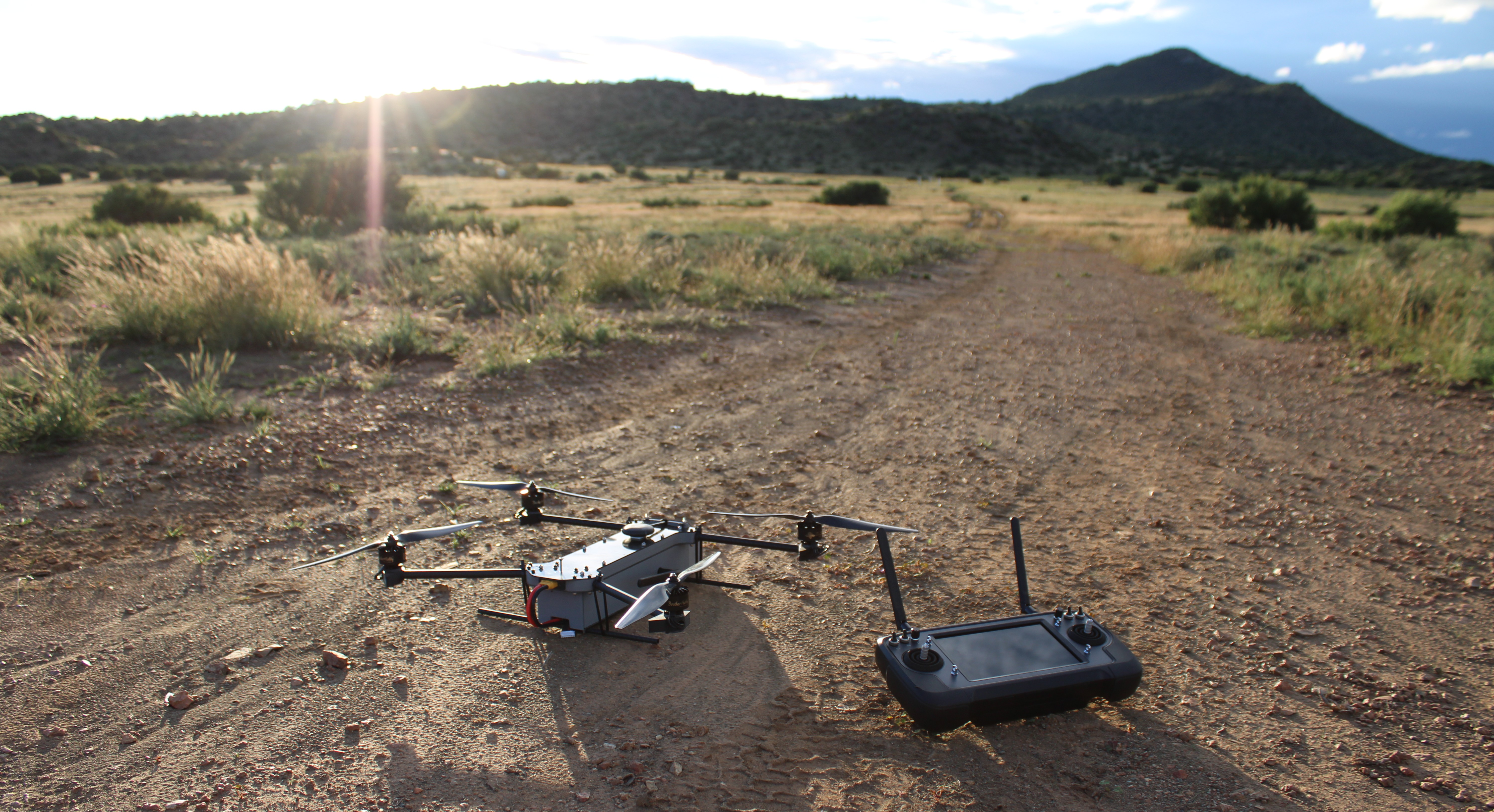

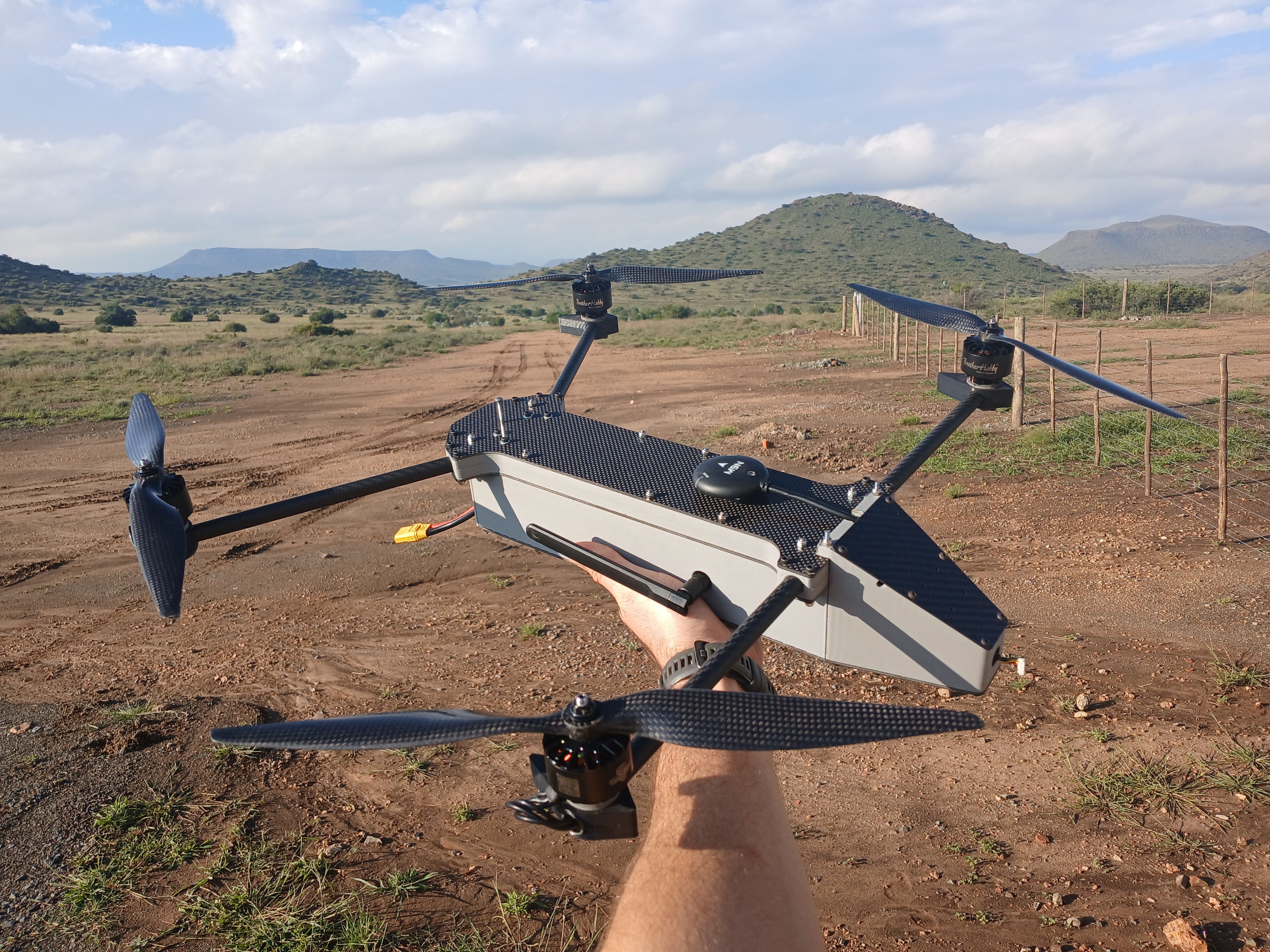

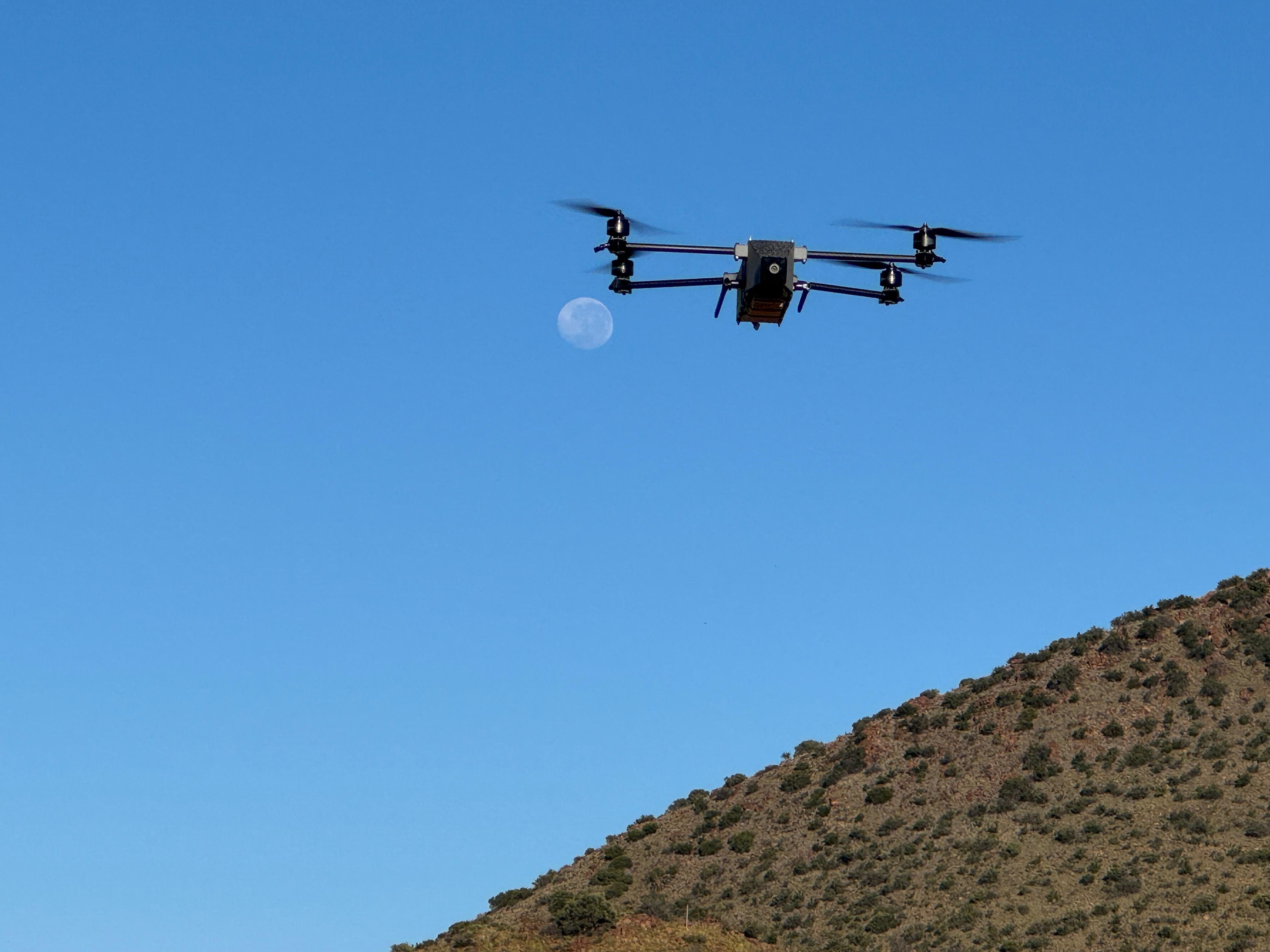

Skipjack

5 kg High-Speed All-Weather Quadcopter

Compact, high-speed platform built for agility and all-weather resilience. Capable in conditions that ground most commercial systems. Enclosed battery bay for fire safety and weather protection.

Max Speed
125 km/h
Endurance
20 min
Max Payload
2 kg
GCS Range
13 km LOS
Wind Rating
35 km/h
Conditions
Heavy rain · −5–50°C
  • Heavy rain capable — fully enclosed electronics and battery bay
  • Same 13 km GCS with 1080p live video feed
  • Full autonomy stack: missions, RTL, geofence, failsafes
MOTOR MOUNT — TOP VIEW / SECTION A-A Ø14 BORE H7 FIT SHAFT SECTION A-A 66 mm Al 6061-T6 Ø136 FLANGE M5×6 BOLT ×6 DTA-MM-001 REV A

Engineering Services

UAV Design & Integration

Deltatech Aero provides UAV engineering and consulting services to aerospace and defence organisations alongside its own product line.

Payload & Sensor Integration

Any sensor or payload integrated directly with the flight control system and datalink — from thermal and multispectral cameras to custom electronics. Protocol bridging, telemetry, and triggering handled end-to-end.

Customer-Specified Electronics

Datalinks, flight controllers, and onboard electronics swapped or specified to customer requirements, export regulations, or existing ground infrastructure.

Rapid Prototyping & Test Flying

First-article prototype builds from concept to flight-tested hardware. RPL-licensed flight testing on private land.

Flight Controller Programming

PX4 and ArduPilot configuration and tuning. Autonomous mission programming, failsafe logic, and custom flight modes.

CAD Design

SolidWorks, Onshape, Fusion 360. Load path analysis, DFM, and structural design for manufacture.

In-House Fabrication

CNC routing, laser cutting, FDM 3D printing, and machining. Carbon fibre and aluminium components fabricated in-house.

Design for Manufacture

Design datapacks optimised for series production. Tolerances, load paths, and scalable assembly processes.

UAV System Integration

Payload integration, gimbal design, tether systems, electronics harness design, and full system qualification testing.

Professional 3D Rendering

Photorealistic renders for marketing, proposals, and design review. Product visualisations, exploded views, and environment scenes from CAD models or concept briefs.

Classified Programme Experience

A significant portion of consulting work involves platforms that cannot be disclosed publicly. Past programmes include high-speed fixed-wing systems, large VTOL platforms, advanced gimbal systems, and custom launcher development. Details available under NDA.

PROPELLER PERF. — Ø460 / P230 CHORD / PITCH (mm) STATION (r/R) 0.0 0.25 0.50 0.75 1.0 80 60 40 20 CHORD PITCH ANGLE DTA-PROP-460-P230 REV B

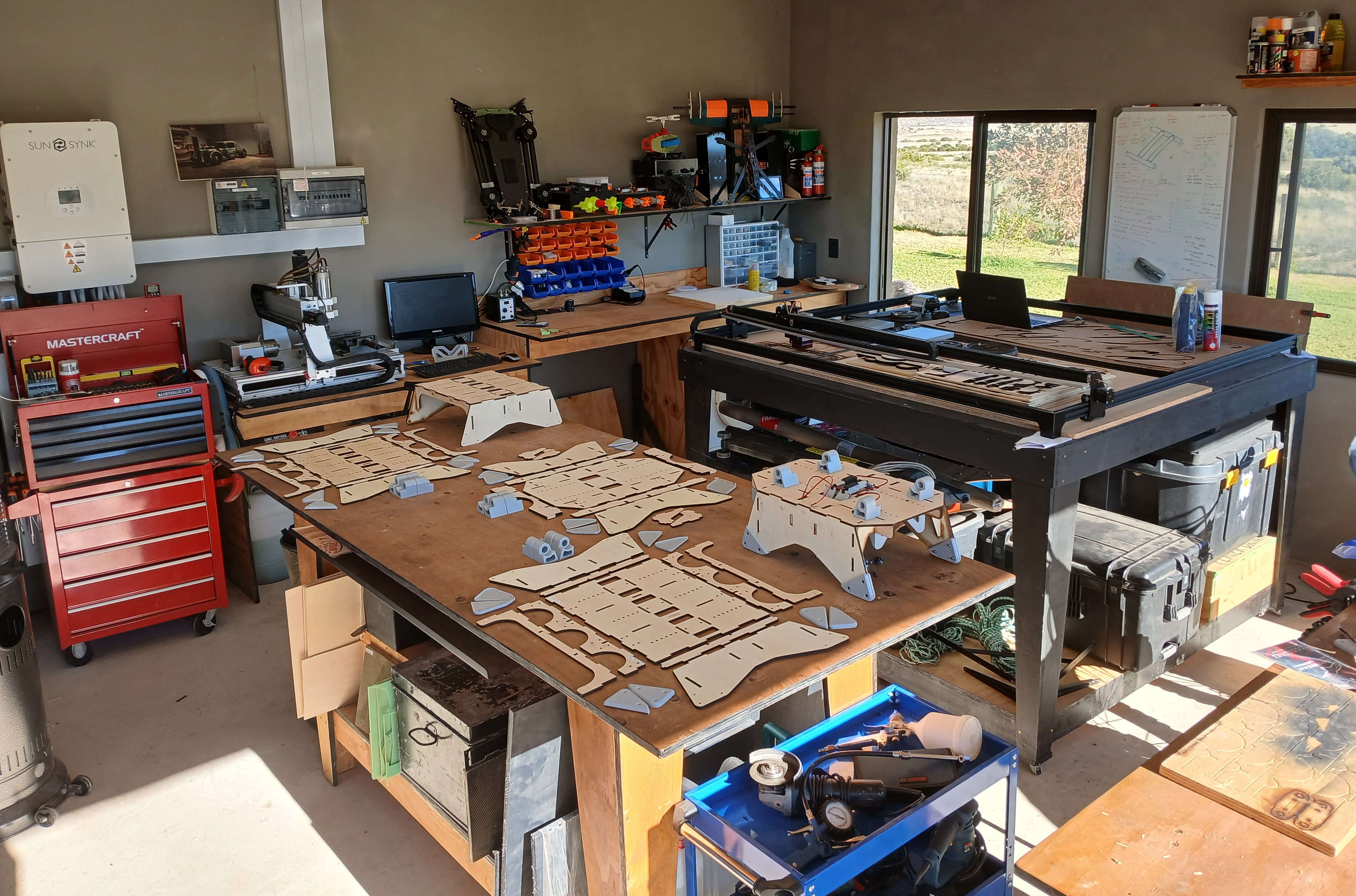

Workshop

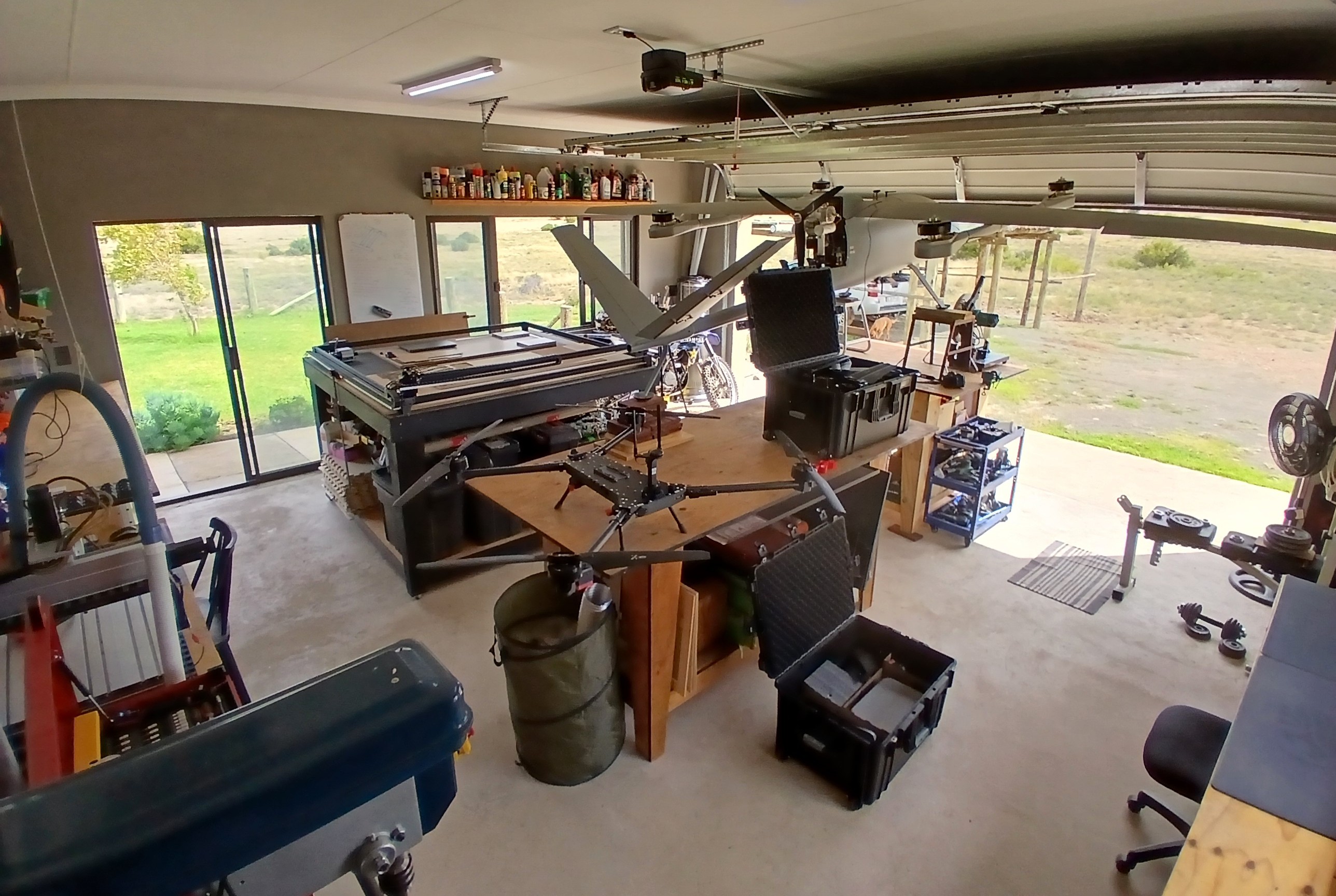

Workshop
Workshop

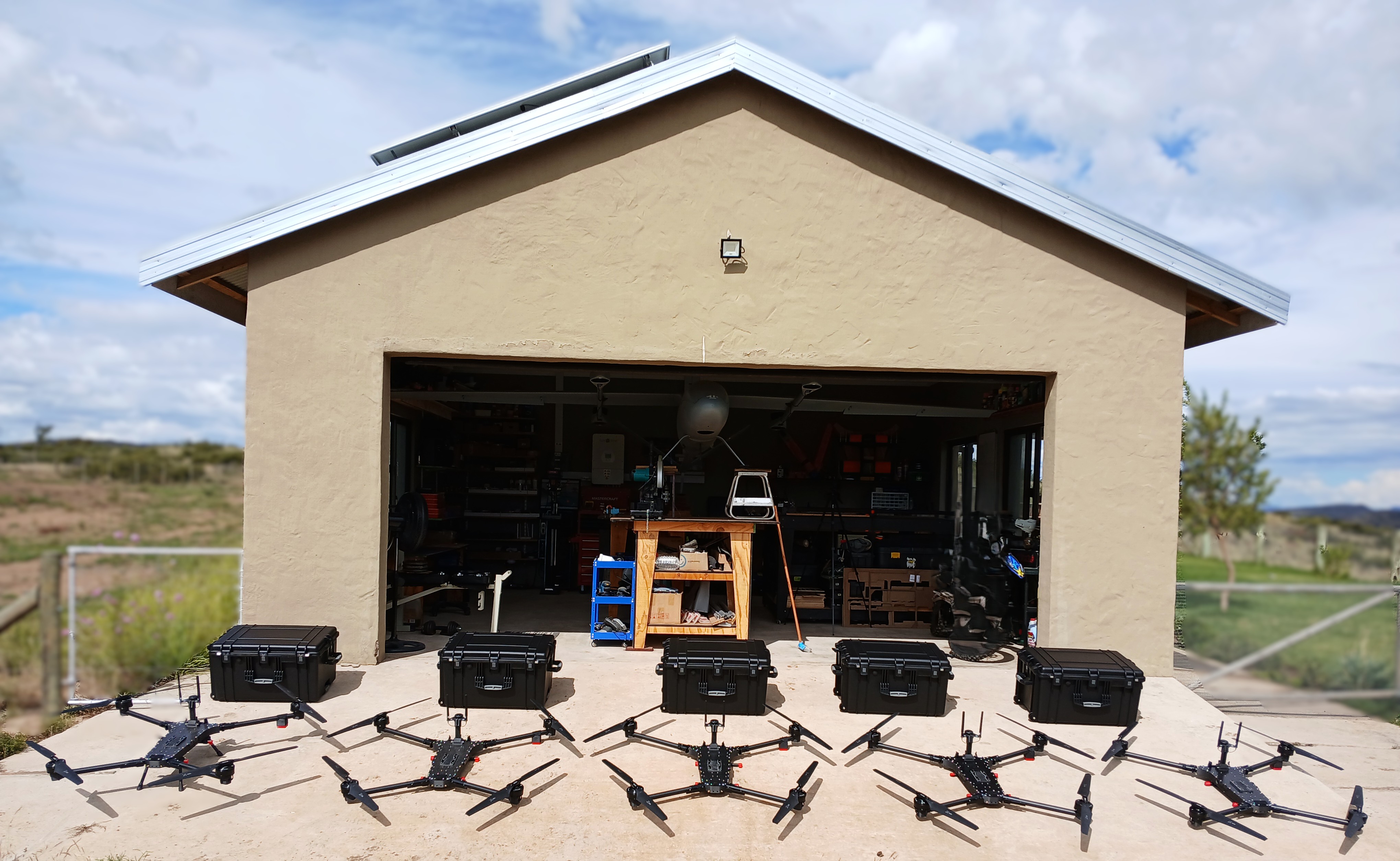

The Facility

Capable Manufacturing Facilities

Secure & Private

Remote Gariep location on perimeter-secured private property. Sensitive programmes and prototypes handled away from observation.

Adjacent Test Field

Large private field directly outside the workshop. Test, observe, return, adjust, and re-fly without moving from site.

Off-Grid Power

Fully solar-powered. No load-shedding impact — operations continue regardless of grid supply.

Full Machine Shop

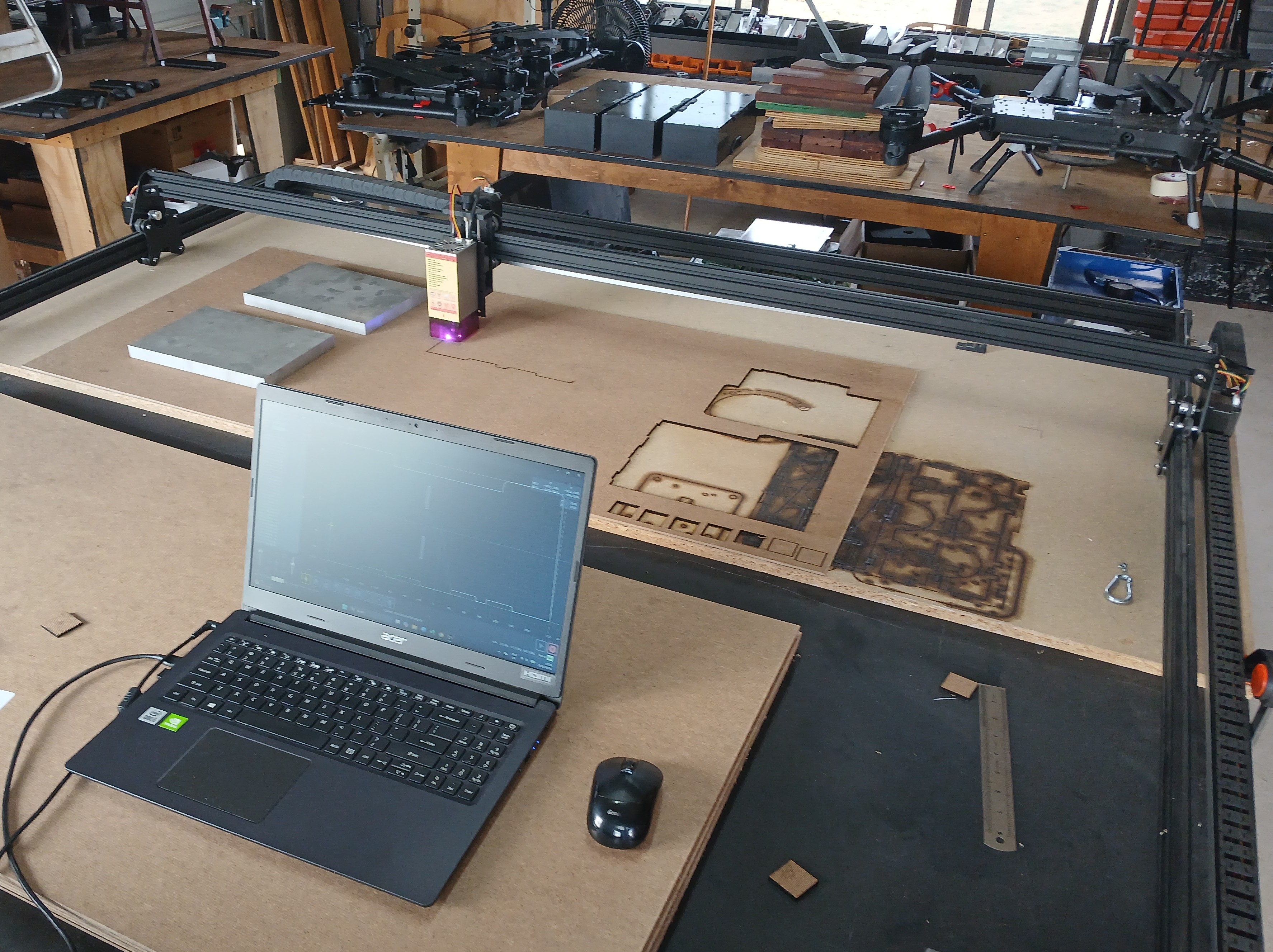

CNC router, laser cutter, FDM 3D printers, and hand tooling. CAD to parts without third-party lead times.

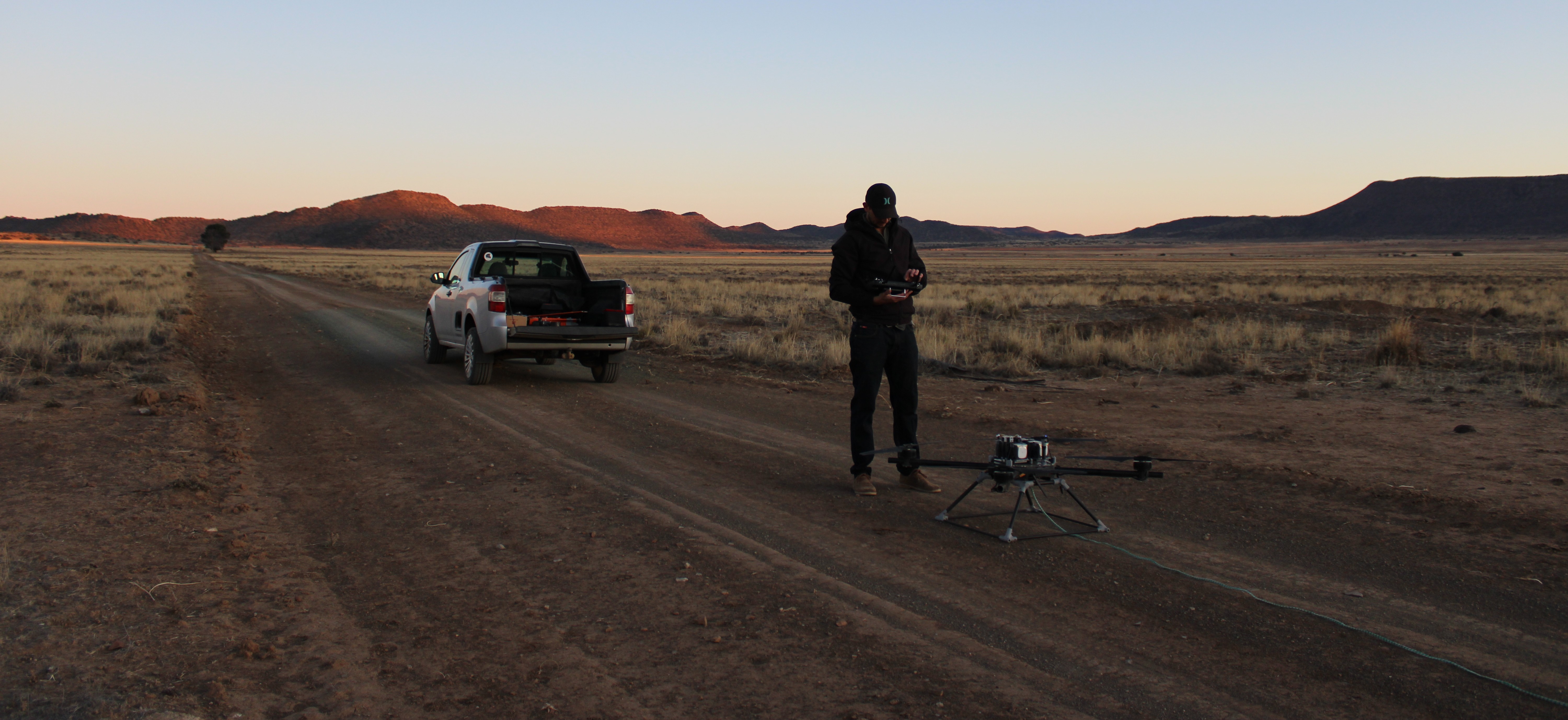

Deltatech Aero field operations

Field Operations

Tested in the Field.
Not on Paper.

Tested in the Karoo — dust, heat, cold, wind, and rain. Performance figures reflect actual flight data, not lab estimates.

Who We Are

Proudly South African.
Built for Real Work.

Deltatech Aero is a South African UAV design and manufacturing company headquartered in Gariep, Free State. We handle the full development lifecycle — concept, mechanical design, electronics integration, flight control configuration, and flight testing — entirely in-house.

Our platforms are built around a single principle: they must perform in the real conditions South African operators face — dust, heat, cold, intermittent power, and remote locations. Every system is validated in the field before it leaves the workshop.

Our vision is to be South Africa’s leading UAV innovator — reducing operator dependence on imported platforms and delivering locally designed, supported, and field-proven systems.

Core Expertise

Full UAV Development Lifecycle

Concept through to commercial deployment — mechanical, electronics, firmware, and flight test under one roof.

Mechanical Innovation

Quick-release and hot-swap battery systems, folding boom architectures, vibration isolation, and rotorcraft dynamics.

RF & Telemetry Systems

Antenna placement optimisation, datalink integration, and robust communication links for long-range operations.

Power Systems & Flight Safety

EMI mitigation, worst-case load testing, and autonomous failsafe features including geo-fencing, RTL, and precision landing.

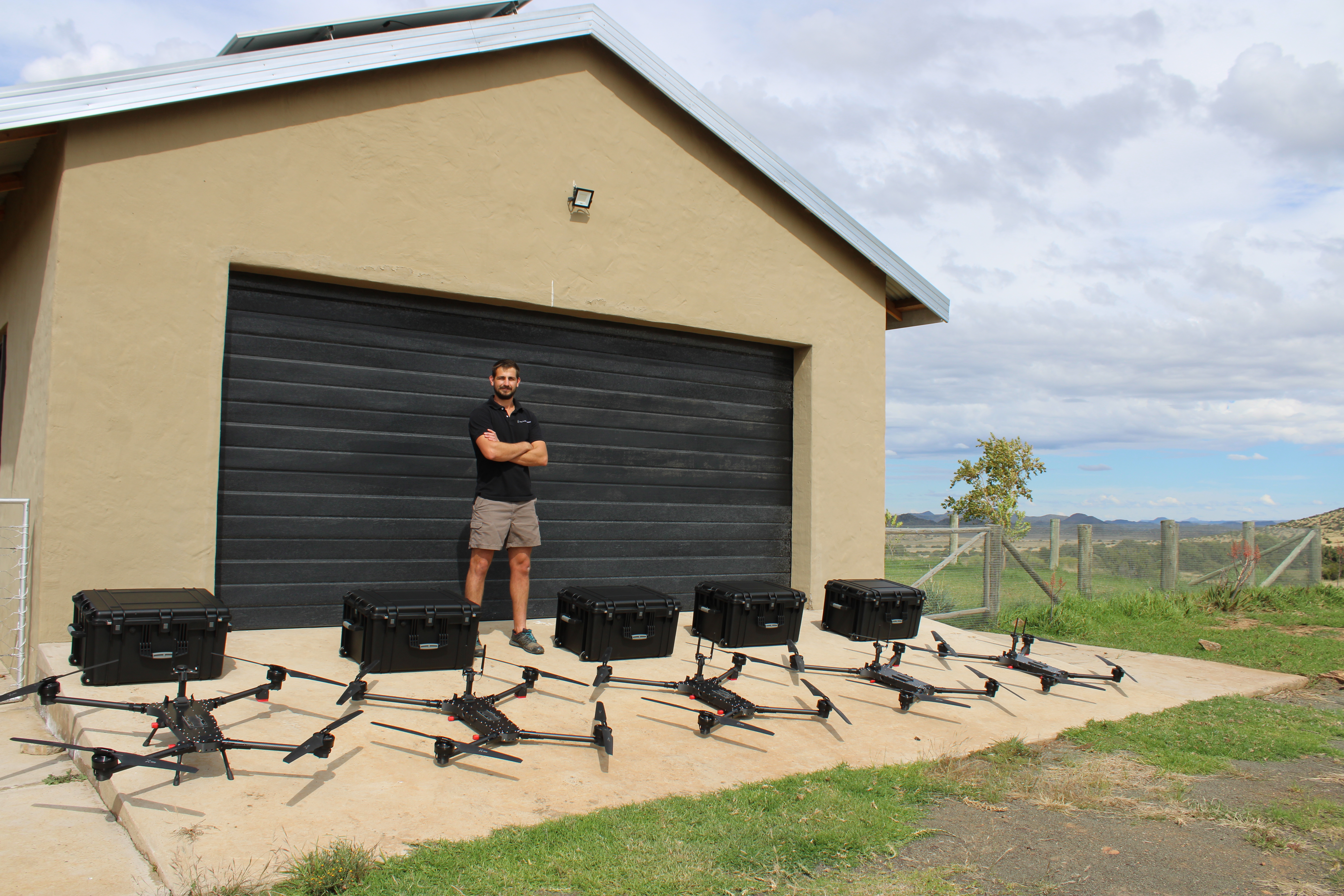

Scott Rosslee

The Founder

Scott Rosslee

BSc Aeronautical Engineering, University of the Witwatersrand. Three years post-graduation at Bronberg Dynamics covering the full design-build-test cycle for large UAV platforms.

Deltatech Aero was founded in 2024, self-funded through consulting work for aerospace and defence organisations. The company currently operates three production platforms and has delivered systems to multiple clients.

Deltatech Aero is actively seeking investors and strategic business partners to scale manufacturing and expand the product line.

BSc Aeronautical Engineering — Wits Remote Pilot Licence (RPL) PX4 & ArduPilot SolidWorks · Onshape · Fusion 360
6+
Years UAV Design & Test Flying Experience
3
Production Platforms
5+
Classified Programmes

Get in Touch

Work With Us

Platform procurement, engineering contracts, integration work, investment, or business partnership — open to the conversation.

Location
Gariep, Free State, South Africa
Registration
Deltatech Aero (Pty) Ltd · 2024/122566/07
